Waga opakowania: 2,5 kg

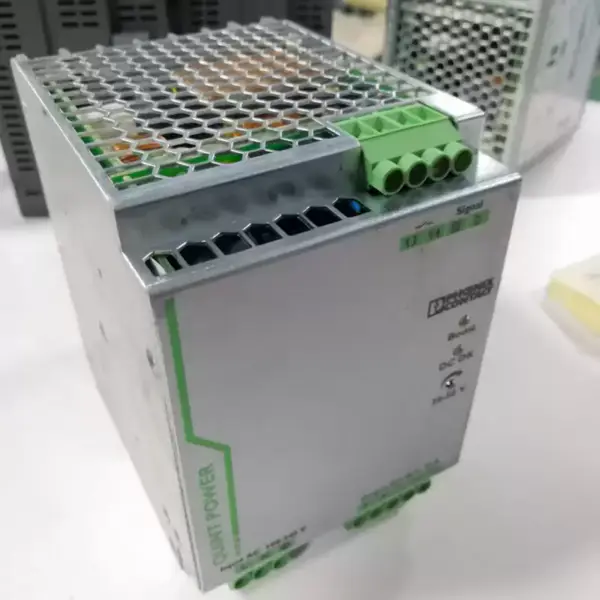

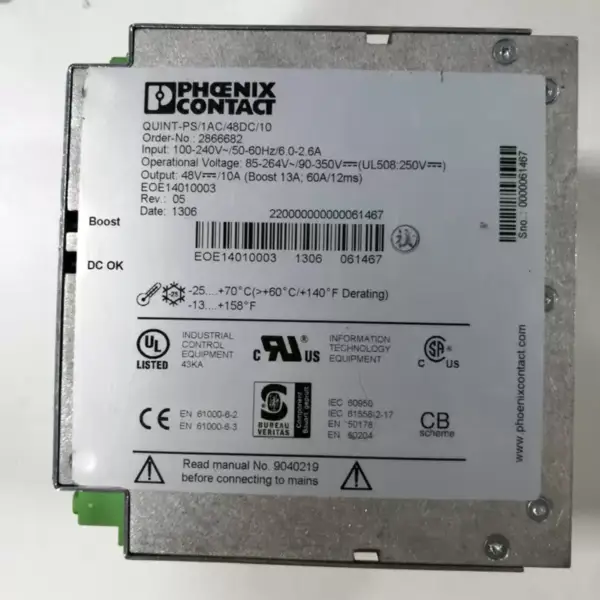

Input data
Input nominal voltage range 100 V AC … 240 V AC
AC input voltage range 85 V AC … 264 V AC
Short-term input voltage 300 V AC
DC input voltage range 90 V DC … 350 V DC
AC frequency range 45 Hz … 65 Hz
DC frequency range 0 Hz
Current consumption Approx. 5.1 A (120 V AC)
Approx. 2.3 A (230 V AC)
Inrush current limitation < 20 A (typical)
I
2t < 3.2 A2s
Power failure bypass > 20 ms (120 V AC)
> 20 ms (230 V AC)
Typical response time < 1 s
Protective circuitry Transient surge protection Varistor
Input fuse, integrated 12 A (slow-blow, internal)
Recommended backup fuse for mains protection 10 A
16 A (characteristic B)
Discharge current to PE < 3.5 mA
Output data
Nominal output voltage 48 V DC ±1%
Setting range of the output voltage 30 V DC … 56 V DC (> 48 V constant capacity)
Output current 10 A (-25°C … 70°C)
13 A (with POWER BOOST, -25°C … 40°C permanent)
60 A (with SFB technology, 12 ms)
Derating From +60°C 2.5% per Kelvin
Current limitation IBOOST = 13 A (for short circuit), approximately
Control deviation < 1 % (change in load, static 10% … 90%)
< 2 % (change in load, dynamic 10% … 90%)
< 0.1 % (change in input voltage ±10%)
Power loss nominal load max. 41 W
Maximum power dissipation idling 16 W
Efficiency > 93 % (for 230 V AC and nominal values)
Ascent time < 0.5 ms (UOUT (10% … 90%))
Residual ripple < 80 mVPP (with nominal values)
Connection in parallel Yes, for redundancy and increased capacity
Connection in series Yes
Surge protection against internal surge voltages yes, limited to approx. 60 V DC
Resistance to reverse feed Max. 60 V DCInput data
Input nominal voltage range 100 V AC … 240 V AC
AC input voltage range 85 V AC … 264 V AC
Short-term input voltage 300 V AC
DC input voltage range 90 V DC … 350 V DC
AC frequency range 45 Hz … 65 Hz
DC frequency range 0 Hz
Current consumption Approx. 5.1 A (120 V AC)
Approx. 2.3 A (230 V AC)
Inrush current limitation < 20 A (typical)
I
2t < 3.2 A2s
Power failure bypass > 20 ms (120 V AC)
> 20 ms (230 V AC)
Typical response time < 1 s
Protective circuitry Transient surge protection Varistor
Input fuse, integrated 12 A (slow-blow, internal)
Recommended backup fuse for mains protection 10 A
16 A (characteristic B)
Discharge current to PE < 3.5 mA
Output data
Nominal output voltage 48 V DC ±1%
Setting range of the output voltage 30 V DC … 56 V DC (> 48 V constant capacity)
Output current 10 A (-25°C … 70°C)
13 A (with POWER BOOST, -25°C … 40°C permanent)
60 A (with SFB technology, 12 ms)
Derating From +60°C 2.5% per Kelvin
Current limitation IBOOST = 13 A (for short circuit), approximately
Control deviation < 1 % (change in load, static 10% … 90%)
< 2 % (change in load, dynamic 10% … 90%)
< 0.1 % (change in input voltage ±10%)
Power loss nominal load max. 41 W
Maximum power dissipation idling 16 W
Efficiency > 93 % (for 230 V AC and nominal values)
Ascent time < 0.5 ms (UOUT (10% … 90%))
Residual ripple < 80 mVPP (with nominal values)
Connection in parallel Yes, for redundancy and increased capacity
Connection in series Yes
Surge protection against internal surge voltages yes, limited to approx. 60 V DC
Resistance to reverse feed Max. 60 V DC
