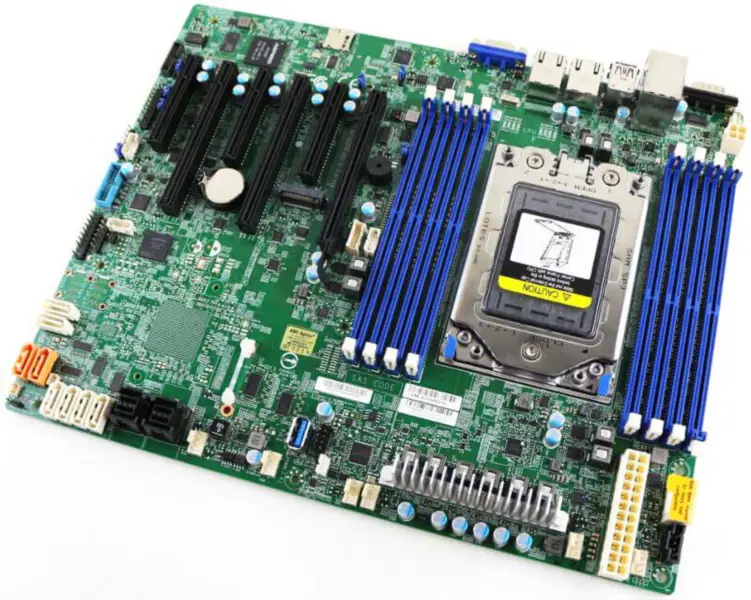

Płyta główna Supermicro H11SSL-i MBD-H11SSL-i

Name: Płyta główna Supermicro H11SSL-i MBD-H11SSL-i
Brand: supermicro
SKU: EMP0071609
Price: 1233.84 PLN
Availability: InStock

magazyn:

marka: supermicro

SKU:{{ product.sku }}

Model: {{ product.model }}

ciężar: {{ product.weight }} kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

ilość:

Szczegóły produktu

Zdjęcia

CPU	Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required) Gniazdo SP3
Cores	Up to 32 Cores Up to 64 Cores (Board revision 2.x required)
Chipset	System on Chip

Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required) 8-channel memory bus
Typ pamięci	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 1GbE LAN via Intel® I210 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC

SATA	16 SATA3 (6 Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header)
VGA	1 VGA port
Inne	1 COM port (rear) 2 SATA DOM power connector 1 TPM 2.0 header

PCI-Express	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16

M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key
